Product Introduction
Jig separator(Jig Concentrator) is one kind Mineral machine of gravity concentrating devices. It can separate material based on differing densities of the material. The Sawtooth Wave jig machine can process mineral materials of various particle sizes, except for very fine materials. The process operation is simple, the equipment processing capacity is large and a certain final product can be obtained in a single selection, so the Sawtooth Wave jig separator is popular in production.

The Jig separator is widely used in concentration of heavy minerals such as tin , tungsten ores, gold, barite, iron, diamonds, manganese, etc., For metal ores, it is one of the main methods for processing coarse, medium, and fine-grained iron ores and manganese ores. And to separate the lead-zinc oxide ore, jig separator has a good performance. JXSC Machine’s mineral jig separator is a very good beneficiation equipment.

Types of Jig Separator

According to the number of gear boxes, jig concentrator can be divided into single gear box and two gear boxes jig.

Jig concentrator model

Single gear box jig separator

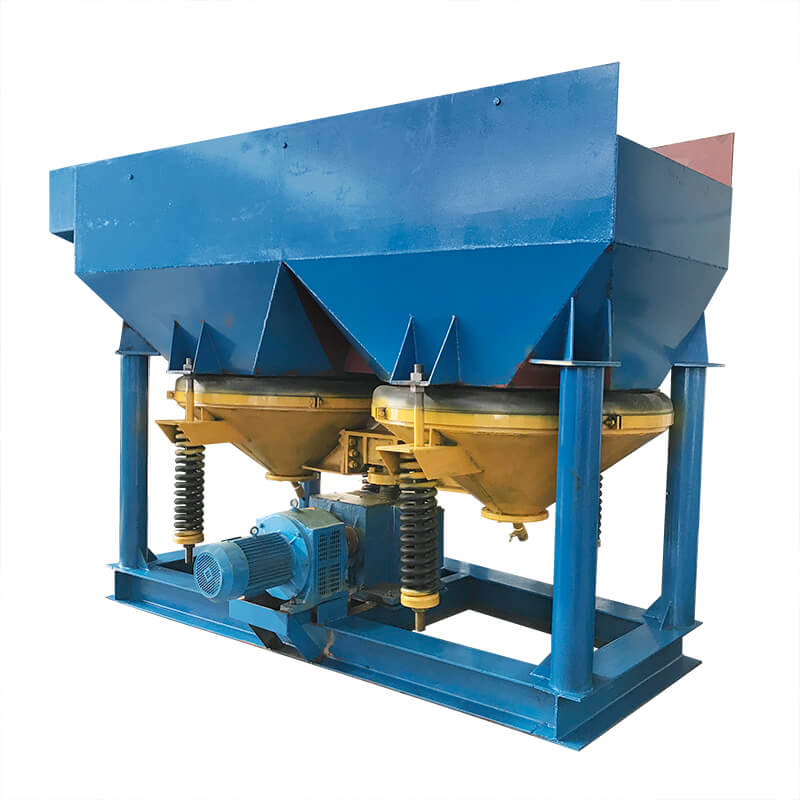

As its name, it means the jig contains single gear box. such as our JT2-2, JT4-2

Double gear boxes jig separator
It contains two gear boxes, JT4-2A.

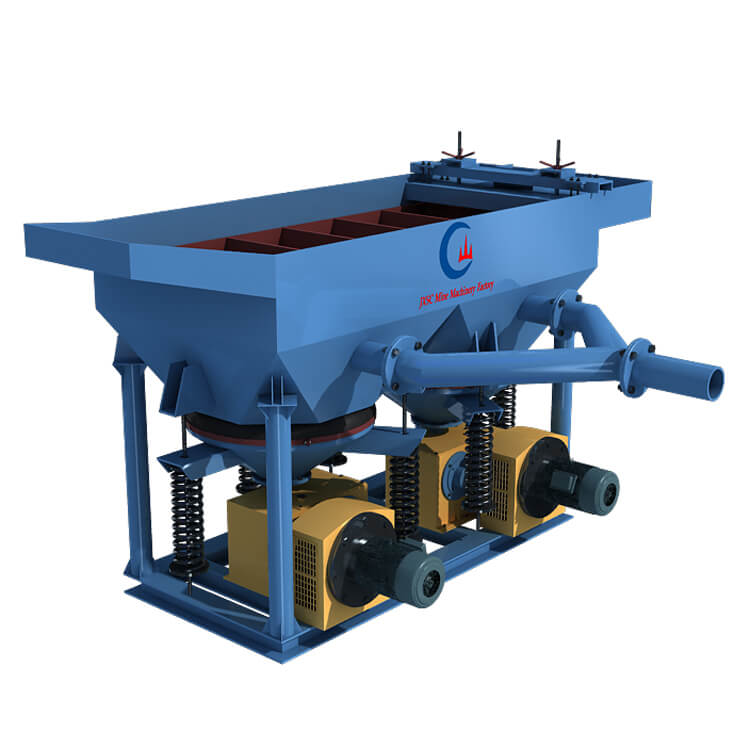

Jig concentrator with two motor

Refer to the effect of one gearbox and two gearboxes’ jig, of course two gearboxes is better. But consider the cost, the suggestion of the chosen of gear boxes: If the feed size is large and the concentrate to be sorted is large, a jig with two gear boxes is better. If the feed size is 3-5mm, a single gear box can be ok.

According to the way of discharging, jig can be divided into jigging on sieve and jigging under the sieve.
Jigging on the sieve
Discharge the ore on the sieve is generally suitable for minerals with a large amount of concentrate and high content that can automatically form a ore deposit. Such as: fluorite ore, manganese ore, chromium ore, iron ore.

Regarding the ore discharged on the sieve, the particles of rare metals larger than the sieve such as tungsten, tin, gold, diamonds, etc., will be deposited on the sieve. It needs to clean up every 6 months.

It is impossible for rare metals to be discharged on the sieve. But ore with a grade of 20-30%, such as manganese ore, iron ore, and chromium ore, can be discharged on the sieve.
The ore is discharged on the sieve, the ore comes in, and the deposit is automatically formed first. The fine concentrate is discharged from below and the coarse particles are discharged from the screen.

Jigging under the sieve
When the jig is used in tungsten ore, tin ore and gold ore, the discharge under the sieve, it is mainly used for sand gold. Rock gold is also used for broken gold particles. Tantalum niobium ore, chromium ore, Manganese ore, hematite and limonite are generally ore discharged on a sieve.

Working Principle
Sawtooth Wave is one of the common waveforms. The sawtooth waveform first rises in a straight line, then falls steeply, rises again, falls steeply, and so on. Our JT sawtooth jig is a single-row, double-chamber, downward-moving jig. It uses water as the beneficiation medium and is sorted according to the difference in the specific gravity (density) of useful minerals and gangues. This type of jigging machine has a saw-tooth waveform due to its pulsating curve, which has the characteristics of uniform rising water flow and rapid descending water flow. The water flow fluctuation curve generated during normal operation is in a sawtooth wave shape, which enhances the suction effect in the jig beneficiation process. It is extremely conducive to the recovery of fine-grained minerals. And it has the characteristics of water saving and continuous operation. .

Advantages and Features

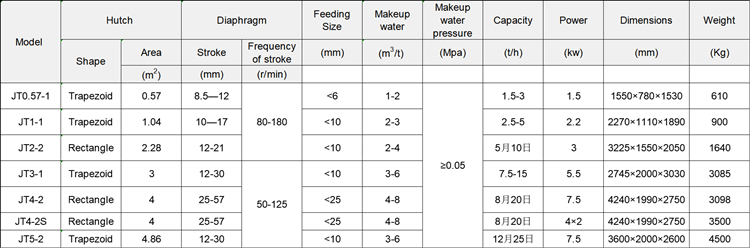

1. The processing capacity is large. Our popular products are models JT0.57-1, JT1-1, JT2-2, JT4-2, and JT6-3. The processing capacity from 1tph to 30tph.
2. Large feed size range: 0-30mm
3. Water saving and continuous work: It can continuous feeding and discharging.
4. Easy adjustment of stroke and stroke rate, simple installation and maintenance.
5. The sawtooth waveform pulsating curve makes the jigging rising water flow uniform and the descending water flow is rapid. It effectively improves the recovery rate of fine-grained useful minerals. And it has an excellent beneficiation effect on fine-grained materials.
6. It can be sieved on and under the sieve:
To be able to discharge ore on the sieve, these conditions need to be met: large quantity and high content; it can automatically form a deposit; not very precious metals (such as iron ore, manganese ore, fluorite ore)
The minerals that can only be discharged under the sieve are: gold, diamond, tungsten, tin, tantalum, and niobium. Because their content is low, generally only a few tenths of a percent, they are precious metals.
