The Cross Belt Magnetic Separator is with a continuously running belt. The belt strips off captured tramp metal and discharges off the side or end of the conveyor. This separator can continuously separate the iron particles in the material on the conveyor belt. Its system uses a high strength overhead suspended plate magnet housed in a severe duty industrial conveyor operating in an inverted position. The permanent magnetic forces provide effective and continuous removal of unwanted tramp metal. And it will retain tramp metal even during power outages and fluctuations.
Our cross belt magnetic separator provides a true self cleaning industrial magnetic separator systems solution, for continuous separation of ferrous particles from material flowing on conveyors. It’s designed to provide a reliable and extremely effective means of metal extraction.
The cross belt magnetic separator is used across many industries for extraction of tramp metal. Such as coal processing, aggregate recycling, concrete and asphalt recycling, crushing and shredding applications, slag processing, scrap yard recycling and wood processing. Refer to cross belt magnetic separation equipment, we recommend our 3 PCS disk dry magnetic separator. Our 3 PCS disk dry magnetic separator is suitable for dry separation of titanium ore, rare earth ore, tungsten tin ore, chromite, niobium tantalite, limonite, zircon, rutile, solitary, andalusite, cyanite, feldspar, quart and so on.
Structure

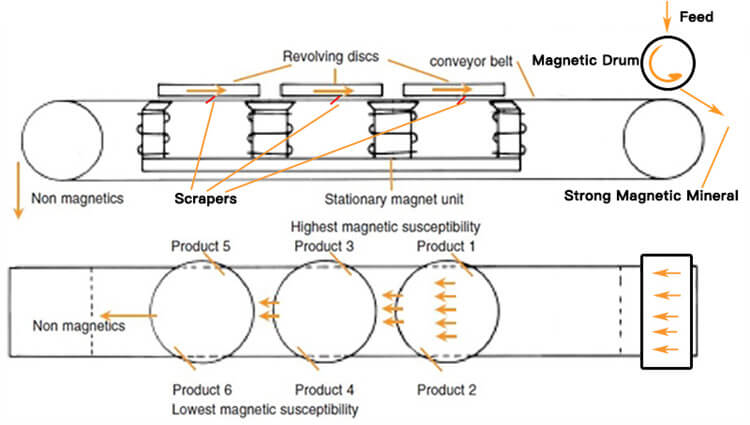

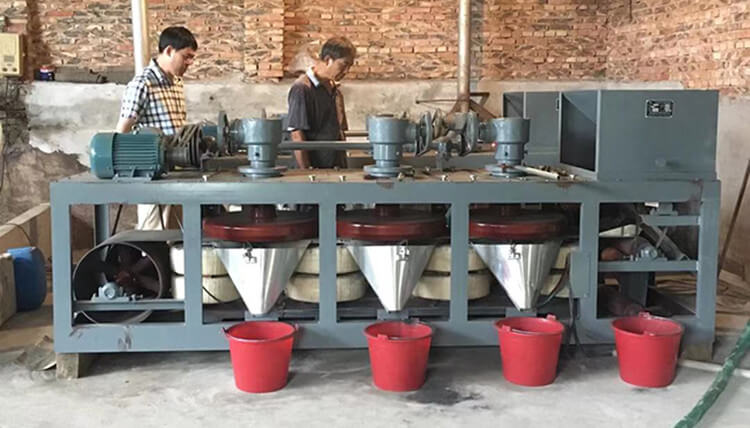

3 PCS disk dry magnetic separator is mainly consists of stock bin, worm-gear case, motor, belt pulley, conveying belt, vibrating feeder, magnetic disc, discharging part and magnet exciting coil. Image as follow
Our 3 PCS disk dry magnetic separators are divided into two models: 3PC-500 and 3PC-600.

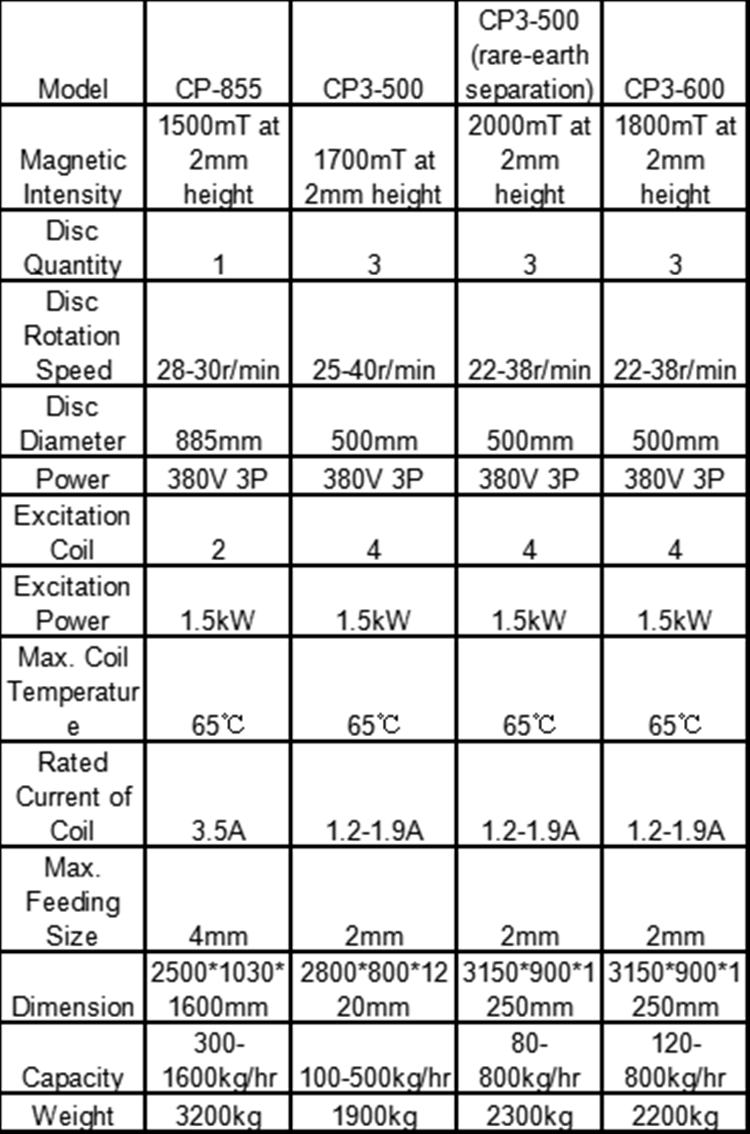

Parameters
Supplementary Note
The magnetic cylinder under the feed is 1000 Gauss iron removal.
The magnetic strength can be adjusted.
The magnetic field strength can be changed by adjusting the distance between the disc and the belt. The distance is inversely proportional to the magnetic strength. Or adjust the 2 voltmeters and 4 ammeters on the electric control cabinet to adjust the current of the 4 coils, thereby changing the magnetic strength.
Adjustable to the highest magnetic strength:
500mm: 15000-18000 Gauss
600mm: 18000-22000 Gauss
If there is a lot of tungsten in the mineral, it is recommended to use 600
A total of 8 discharge ports (the end of the magnetic cylinder + 2 discharge ports for each of the 3 discs + the last belt end)
Magnetic minerals selected from 3 disc From strong to weak magnetic, the output will not be a pure magnetic mineral, but a mixture of magnetic minerals.
Working Principle
According to the magnetic difference of minerals, the magnetic field with different strength can be formed by adjusting the excitation current of disks at all levels to separate minerals efficiently. The induction distance between disks at all levels and the beneficiated particles can be adjusted to obtain different magnetic field induction strength. Thus it achieves the one-time separation of a variety of minerals. This cross belt magnetic separation equipment is widely used in the dry separation of ilmenite, monazite, tungsten tin ore, tantalite and other magnetic and non-magnetic minerals.
Advantages and Features
Reasonable structure, stable performance, strong adaptability.
Small footprint.
Installation, operation and maintenance are simple.
The intensity of the magnetic field is adjustable, and the magnetic field can be adjusted according to different raw materials to achieve efficient sorting.
The sorting effect is good. It can separate a variety of minerals such as strong magnetic, weak magnetic and non-magnetic at one time.
It can be adapted to dry operation in water-deficient mining areas.
Long service life.
Affordable.
The magnetic field strength can reach more than 20,000 Gauss.
