gold shaker table with mobile wheel for sale
Shaking table(shaker table) is also called table concentrator, which is a gravity separation device for fine minerals . Shaking table is used for the process of rare metals and precious metal ores. It’s widely used to sort out tungsten, tin, tantalum, niobium, gold, Iron, Chrome, Manganese, Zircon, Lead and so on. It can be used for different operations such as roughing and sweeping, and sorting coarse sand (2-0.5mm), fine sand (0.5-0.074mm), sludge (-0.074mm) and other different particle sizes. When processing tungsten, tin and other ores, the effective recovery particle size range of the shaker is 2-0.22 mm.
The beneficiation process of shaking table is carried out on the inclined bed surface with multiple strips. The ore particles are fed into the ore trough at the corner of the bed surface. The water trough is supplied with horizontal flushing water meanwhile. The ore particles are in gravity and lateral under the action of the impulse of flowing water, the inertia and friction generated by the reciprocating asymmetrical movement of the table surface. It is layered according to specific gravity and particle size. And it moves longitudinally along the bed surface and laterally along the inclined surface of the table.
The ore particles are subjected to the following three mutually perpendicular forces on the surface of the shaking table:
(1) The gravity of the mineral particles in the medium;
(2) The hydrodynamic effect of lateral water flow and slurry flow;
(3) The power of the differential reciprocating motion of the bed surface.
Structure

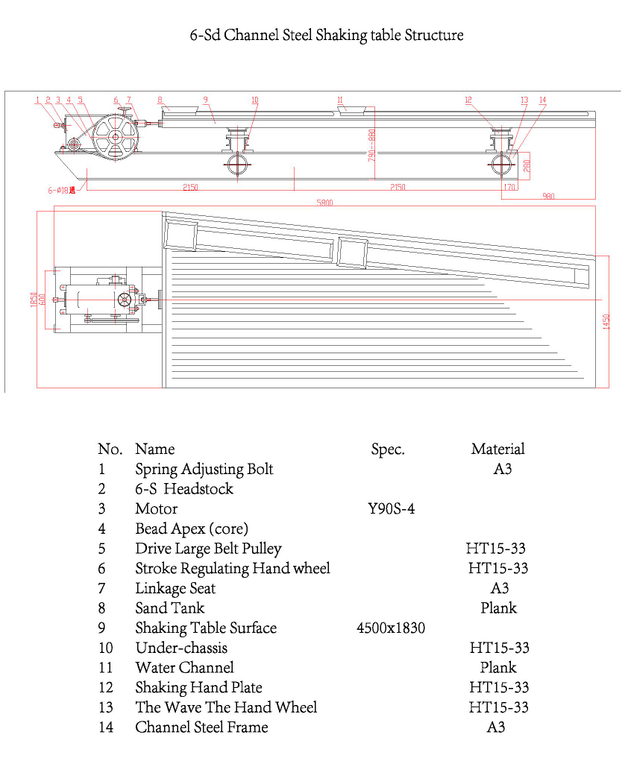

The table concentrator is mainly composed of the following 5 parts: transmission mechanism (including table head and motor), ore feeding chute, table surface, water feeding chute, slope adjustment mechanism (horizontal adjustment.

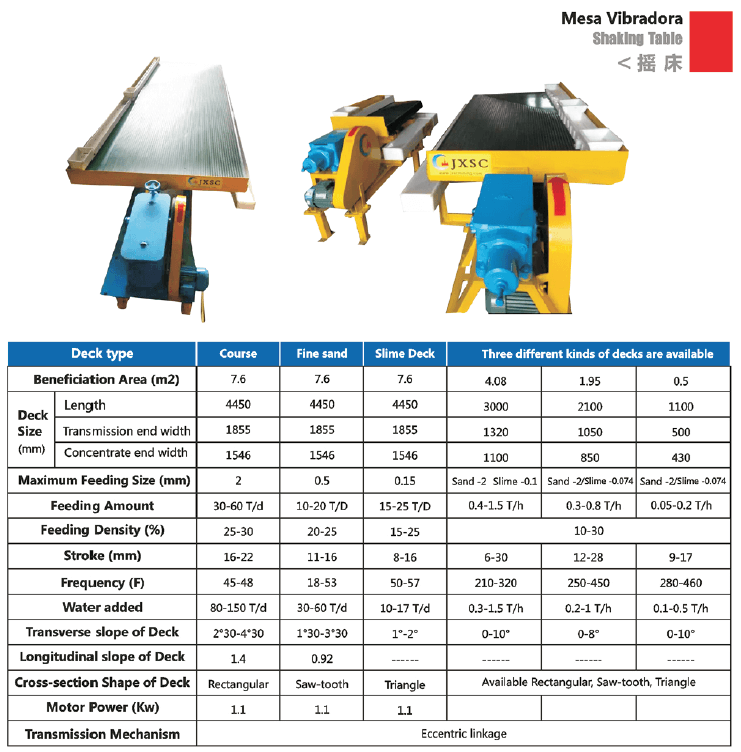

Parameter:
Our shaking tables mainly include 3 models:
1. Laboratory shaker: LY1100*500 Shaker surface size: 1100*500*430mm;
2. Standard shaking table within 2.1 meter: LY2100*1050, shaker surface size: 2100*1050*850mm;
3. 6S shaking table: 6S-4500, shaker surface size: 4500*1850*1560mm
According to the different feed particle size, 6S shaking table can be divided into 3 kinds of table surface: coarse sand, fine sand and sludge. There are 5 different slot numbers to choose(46/60/88/120/138 slots).
New Shaking Table for Sale

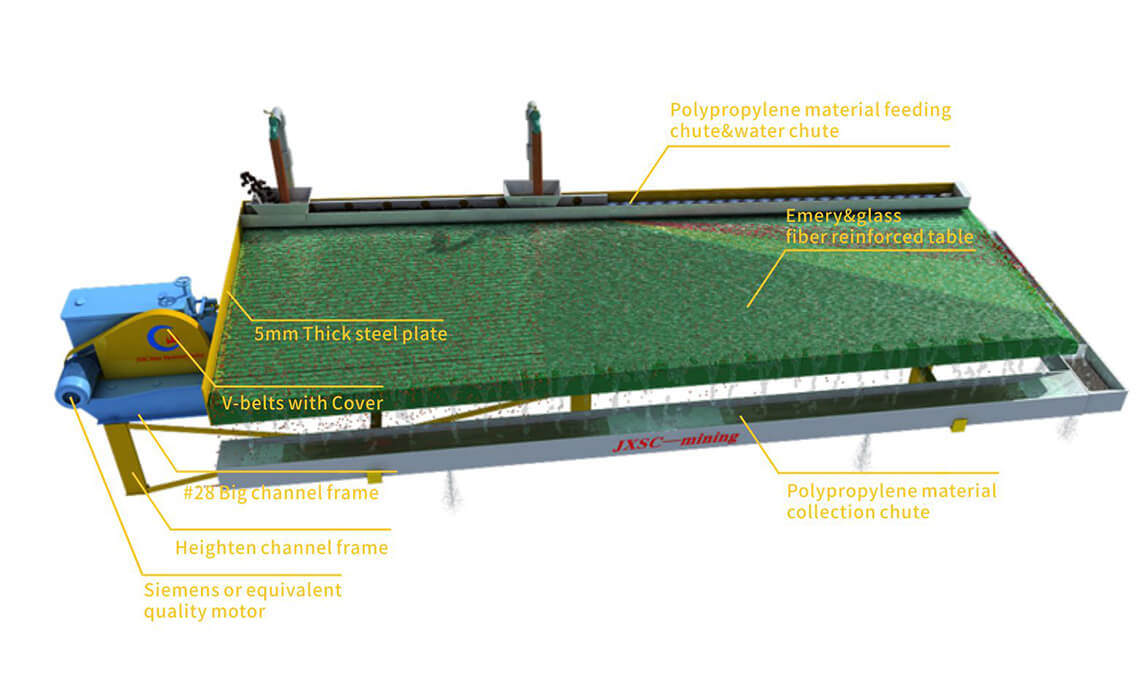

Feature of New Shaker:
- Belt with cover
- PP material collection chute, material feeding chute & water chute.
- Big & heighten channel frame
- 5mm thick steel plate
- Emery & glass fiber reinforced table
New types of shaking tables are recommended because of its advantages.
In addition to the above table concentrator, we also provide double-tables’ shaking table and mobile shaking table.

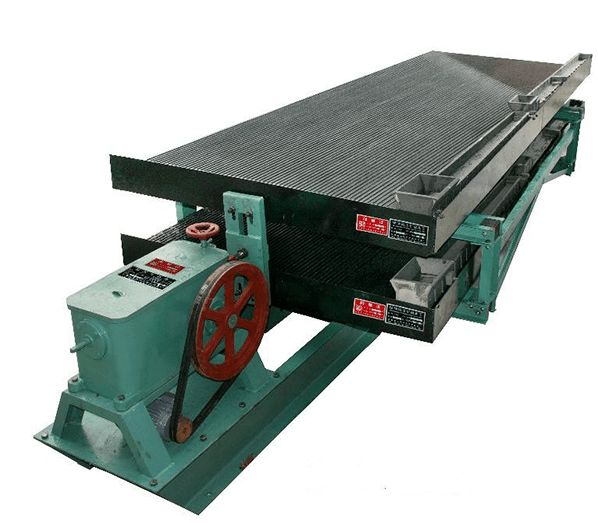

Double Deck shaking table
Working Principle
The longitudinal reciprocating movement of the table surface of the shaker is realized by a crank connecting rod transmission mechanism. The electric motor drives the crankshaft to rotate through the belt drive, and the rocker moves up and down accordingly. When the rocker moves down, the toggle plate pushes the rear axle and the reciprocating rod to move backward, and the spring is compressed. The table surface is connected with the reciprocating rod through the linkage seat, so the bed surface is also moved backward at this time. When the rocker moves upward, the bed surface moves forward due to the tension of the spring.
With the rod moving down, minerals on tilting deck installed by rifle spokes go into the feed box. Meantime water stored in the water tank impacts the minerals laterally. According the shaking and washing, minerals of different sizes and densities flow from discharge outlets, which separate concentrates and tailings clearly and efficiently. The production and accuracy of shaking table have improved significantly since the mining shaker tables have been upgrading in line with advanced technologies.
Advantages and Features
High recovery ratio;
High concentration ratio;
Simple operation;
Easy installation;
Easy to adjust the stroke;
It can still maintain the bed surface running balance when changing the lateral slope and stroke;
The spring is placed in the box with a compact structure, and the final concentrate and the final tailing can be obtained in turn;

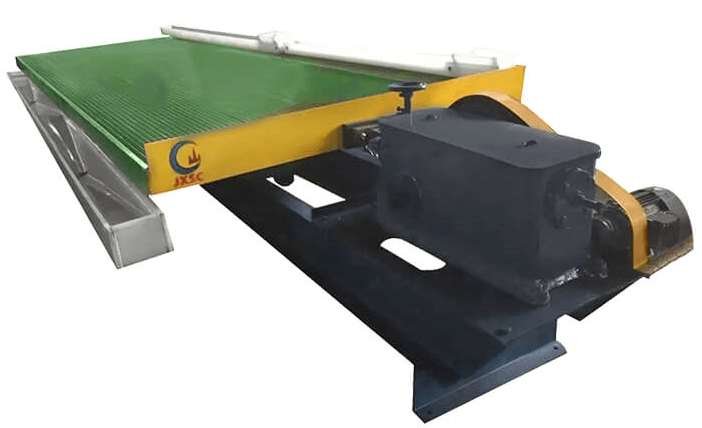

More robust and durable by increase the height of the large channel steel;
Iron sheet or PP collection chute can be chosen, suggest PP collection chute;
Longer service life with PP material of the feeding chute and collection chute;
The motor is equipped with a belt protection cover;
Wear-resistant coating is added to the surface of the shaking table, which is more durable;
The color of the surface of the shaking table is optional.
Adjustable stroke length and speed.
