80-100 tph trommel wash plant with stainless steel screen & pu liner
Product Introduction

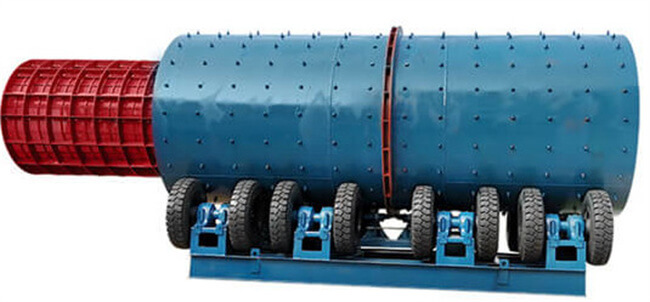

Trommel scrubber is also known as trommel washing machine, trommel concentrator. It is used to clean the mud-containing ore before the beneficiation process is executed, and to improve the beneficiation index of the subsequent process. It is often used for manganese ore, iron ore, limestone, tungsten ore, tin ore, and silica sand washing of ore and other minerals. The trommel washing machine is a large-scale equipment used in ferrous and non-ferrous metallurgical mines, iron and steel, metallurgy, chemicals, and building materials to wash ore and stone. It has a large processing capacity to meet the high productivity and the cleanliness of the ore and stone. It’s also an ideal equipment for businesses that require.
Our Trommel Scrubber is a device that can avoid clogging of smashing and screening by the mud in the mud-containing mineral materials. It has a very high degree of sand and gravel cleaning. It has also been widely used in many sand and gravel production lines.
Types of Trommel Scrubber

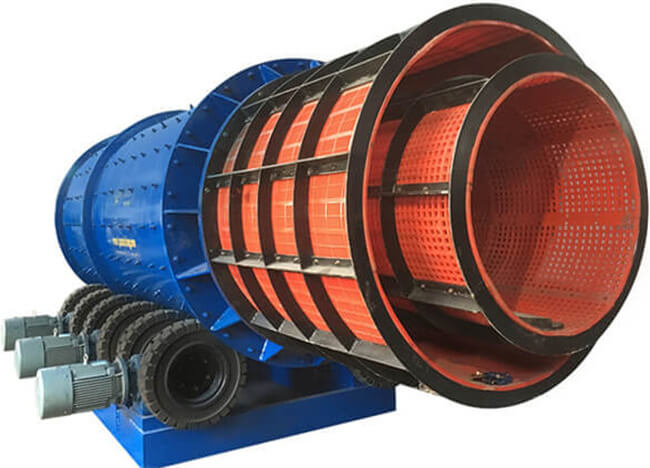

Stationary Type Trommel Scrubber

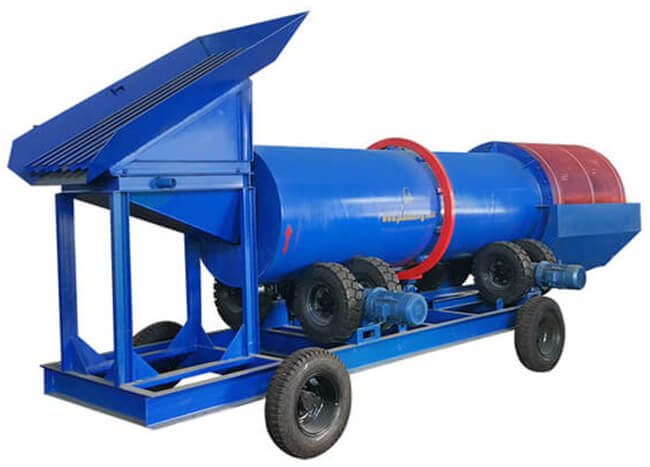

Mobile Type Trommel Scrubber
Mobile type is easy to move and convenient.
Note: Our Trommel Scrubbers model 400-1500 can be made to mobile type. Model 1800+ are just made to stationary type.
Structure

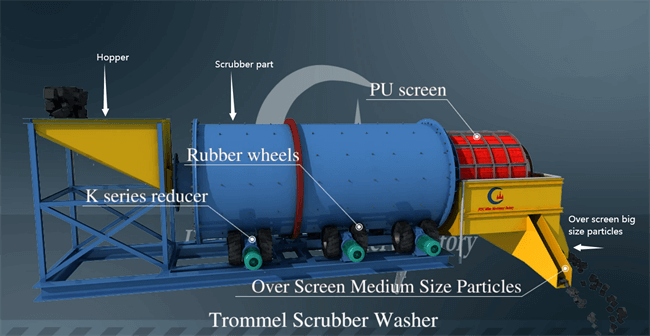

The Trommel Scrubber is mainly composed of a motor, a reducer, a drum device, a frame, a sealing cover, and an inlet and outlet.

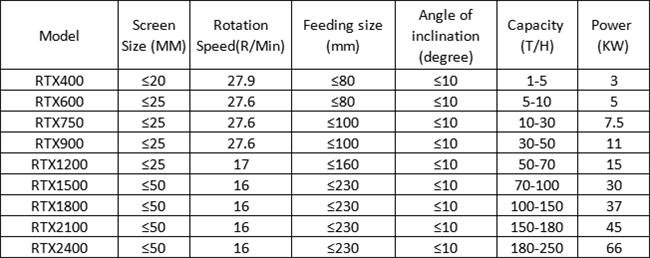

Parameters
Working Principle
The cleaning cylinder of the Trommel Scrubber is supported by four tugs. The motor drives the reducer, and the pneumatic tire drives the cleaning cylinder to rotate at a low speed. The material containing slime enters the rotating drum from the feed port. The drum is generally equipped with wear-resistant rubber lining plates or welded spiral steel sheets, and the material hits the rubber lining. The slab or spiral steel sheet separates the mud. After repeated cycles, it will be washed by reverse or forward flushing water. The cleaned material will pass through a cylindrical sieve for preliminary screening, and the waste rock will be screened out. The under-screened material will enter to the next device. Waste water containing sludge will be discharged through the discharge port.
Advantages and Features
Large processing capacity(1-300tph), strong ore washing capacity.
It is best for cleaning materials containing viscous mud.
The structure is simple. The impeller drive bearing device is isolated from water and water-receiving materials, which greatly avoids the phenomenon of damage to the bearing caused by water, sand and pollutants.
The long-shaped ore washing cylinder makes the material stay for a long time, fully and powerfully dispersing the material completely.
The barrel adopts thickened steel plate.
Use heavy-duty bearings, gears and tugs.
The motor and gear system with large output power produces high-efficiency torque.
High Integrity: Except for the finished material stacker belt conveyor, all systems are integrated in an overall frame, which not only ensures the integrity of the equipment, but also leaves moderate maintenance and inspection space.
It is convenient and safe. The high integrity of the equipment makes it convents to storage on the construction site or transfer and transportation.
Working Reliability: The stone washing system at the core of the trommel scrubber adopts the mixing principle of the mixer. The raw materials are rolled and pushed by the continuous spiral blades and the friction between the materials in the mixing drum, which has a strong effect, natural and high reliability.
The washing machine has strong economical usability.
Large feed size and it is mainly used for desliming operations where artificial sand and sand aggregates are less than 80mm.
The aggregate mud content after washing by the Trommel Scrubber can be less than 0.5%, and the water content is less than 2%.
Spiral steel sheet can be welded in the drum, or wear-resistant rubber liner can also be installed.
The washing machine can be screened or not, adjusted according to customer requirements, it can be a cylindrical screen or a vibrating screen.
Screen material optional: PU, stainless steel, manganese steel.
